Multimeter
Beskrivning
Bahcos digitala multimeter BMMTRMS1 är precis och tillförlitlig och den perfekta lösningen för den som vill ha en testapparatur för enkel och säker mätning av växel-/likströmsspänning, amperetal, frekvens, resistans, kapacitans, kontinuitet, polaritet och temperatur.

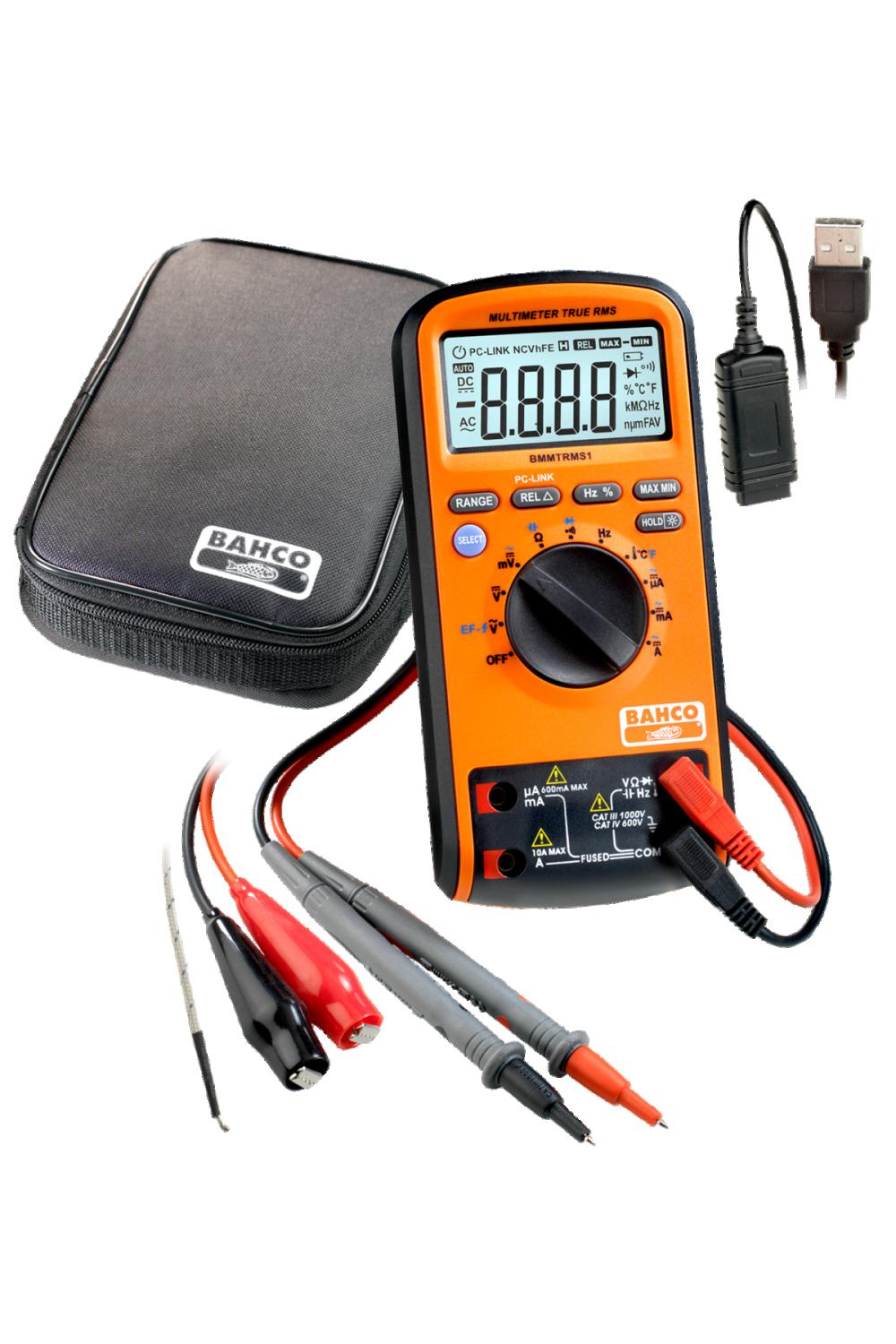

Innehåll:.
multimeter med väska och snodd.
Testprober med silikon och 1 m långa kablar: CAT III, 1 000 V, 10 A.
1 meter långa probekablar med krokodilklämmor i koppar och öppningsmått 12,7 mm: CAT III, 1 000 V, 10 A.
T°-sensorprobekabel, 1 m.
USB-kabel för datoranslutning, 1,2 m.
USB-minne med PC Link-programvara och bruksanvisning på 12 språk: engelska, franska, spanska, svenska, turkiska, ryska, portugisiska, italienska, grekiska, slovenska, tjeckiska och polska.
Kalibreringsrapport.
1 6F22-batteri (9 V) medföljer.
Specifikationer:.
mätning av faktisk RMS.
Kontaktfri spänningsmätning.
Relativ mätning.
Automatisk avstängning.
Datalagring.
Bakgrundsbelysning.
Automatiskt/manuellt områdesval.
Polaritetsindikator.
Diodtest.
Kontinuitetstest.
Indikering av låg batterinivå.
Område för likspänning: 600 mV ±0,5 %, 6 V/60 V/600 V ±0,8 %, 1 000 V ±1,0 %.
Område för växelspänning: 600 mV/6 V/600 V ±1,0 %, 1 000 V ±1,5 %.
Likström: 600 uA/6 mA/60 mA/600 mA 6A/10 A ±1,5 %.
CAT-standard: CAT III 1 000 V, CAT IV 600 V.
Resistans: 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ ±0,5 %, 60 MΩ ±1,5 %.
Kapacitans: 6 nF ±3,0 %, 600 nF/6 uF/60 uF/300 uF ±5,0 %.
Logisk frekvens: 10 Hz–1 MHz ±(0,1 %+3).
Linjär frekvens: 10 Hz–10 kHz ±(0,05 %+8).
Pulslängd: 1–99 %.
Temperatur: -55 till 1 000 °C ±(2 %+2).
Säkringar: 0,63 A/1 000 Vx1 för µA- och mA-områdena och 10 A/1 000 Vx1 för 10 A-området
